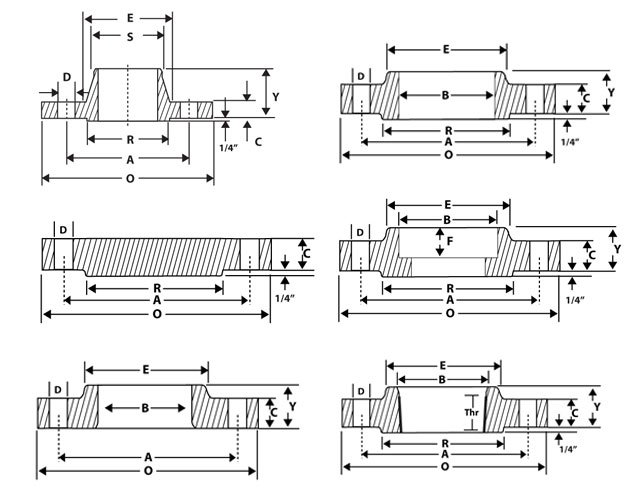

DIMENSIONS OF CLASS 2500 FLANGES (ANSI B 16.5) (in mm)
Nominal
Pipe Size		 Flange
Dia
‘O’		 Dia of
Bolt Circle
‘A’		 Dia of Bolt Holes
‘D’		 No. of
Holes		 Thk of Flange
‘C’		 Diameter at Weld Bevel Dia of Hub
‘E’		 Length Through Hub Bore ‘B’ Dia of
R/F
R		 Depth of
Socket
F		 Length
of
Threading
S/O & S/W
Y		 W/N
Y		 L/J
Y		 S/O & S/W
B		 L/J
B
1/2” 15 133.3 88.9 22.2 4 30.2 21.3 42.9 39.7 73.3 39.7 22.3 22.9 34.9 – 28.6
3/4” 20 139.7 95.2 22.2 4 31.7 26.7 50.8 42.9 79.4 42.9 27.7 28.2 42.9 – 31.7
1” 25 158.7 107.9 25.4 4 34.9 33.5 57.1 47.7 88.9 47.7 34.5 35.0 50.8 – 34.9
1 ¼” 32 184.1 130.2 28.6 4 38.1 42.2 73.0 52.4 95.2 52.4 43.2 43.7 63.5 – 38.1
1 ½” 40 203.2 146.0 31.7 4 44.4 48.3 79.4 60.3 111.1 60.3 49.5 50.0 73.0 – 44.4
2” 50 234.9 171.4 28.6 8 50.8 60.4 95.2 69.8 127.0 69.8 62.0 62.5 92.1 – 50.8
2 ½” 65 266.7 196.8 31.7 8 57.1 73.1 114.3 79.4 142.9 79.4 74.7 75.4 104.8 – 57.1
3” 80 304.8 228.6 34.9 8 66.7 88.9 133.3 92.1 168.3 92.1 90.7 91.4 127.0 – 63.5
4” 100 355.6 273.0 41.3 8 76.2 114.3 165.1 107.9 190.5 107.9 116.1 116.8 157.2 – 69.8
5” 125 419.1 323.8 47.6 8 92.1 141.2 203.2 130.0 128.6 130.0 143.8 144.5 185.7 – 76.2
6” 150 482.6 368.3 54.0 8 107.9 168.4 234.9 152.4 273.0 152.4 170.7 171.4 215.9 – 82.5
8” 200 552.4 438.1 54.0 12 127.0 219.2 304.8 177.8 317.5 177.8 221.5 222.2 269.9 – 95.2
10” 250 673.1 539.7 66.7 12 165.1 273.0 374.6 228.6 419.1 228.6 276.3 277.4 323.8 – 107.9
12” 300 762.0 619.1 73.0 12 184.1 323.8 441.3 254.0 463.5 254.0 327.1 328.2 381.0 – 120.6
